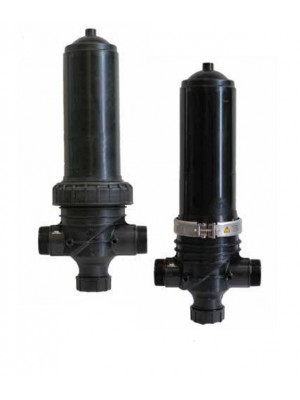

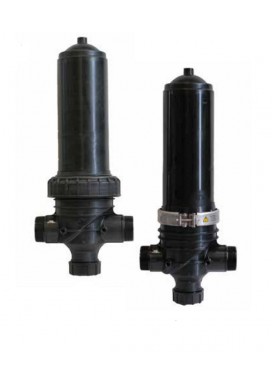

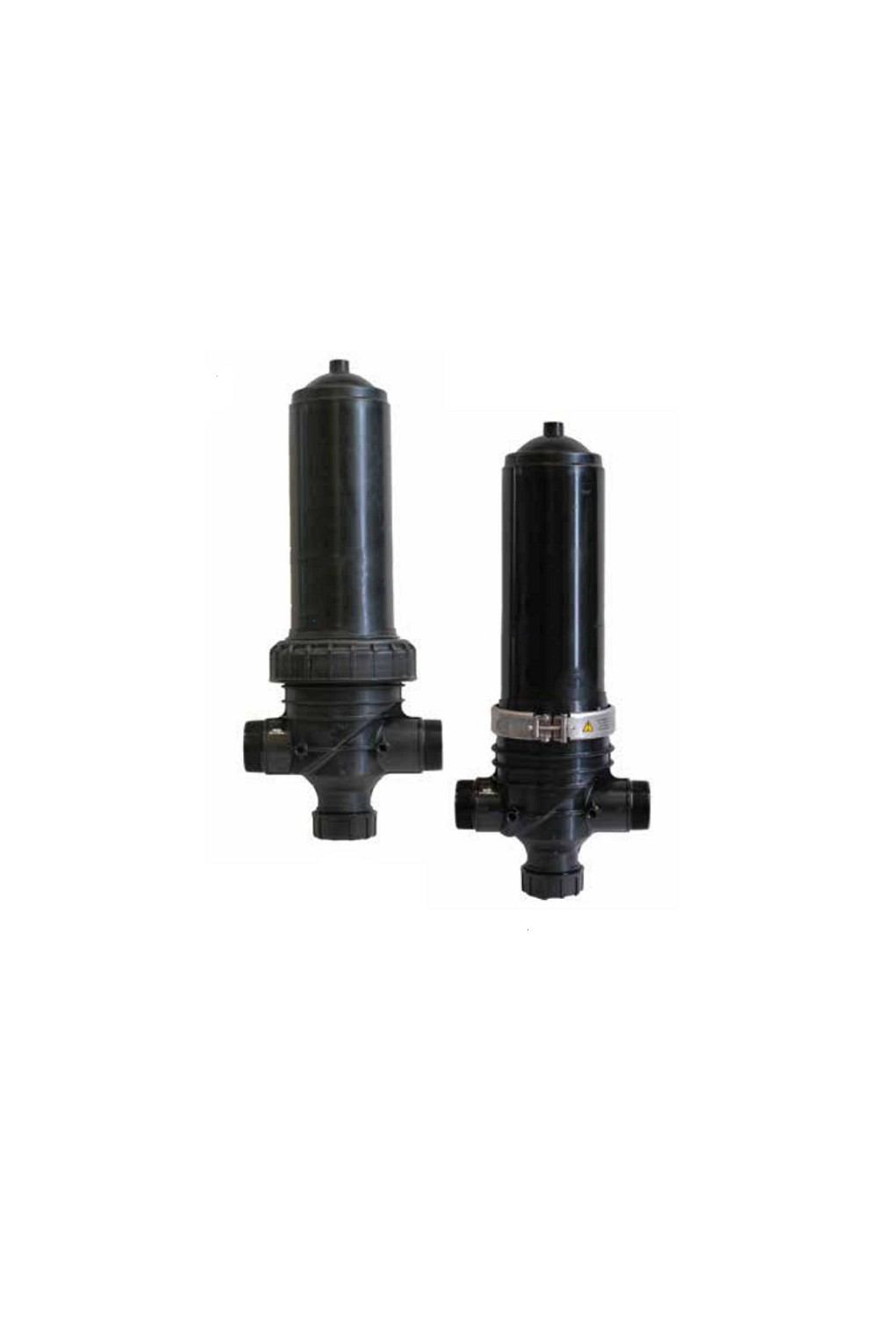

Materials
- Body: polyamide reinforced with fibre glass
- Cover: polyamide reinforced with fibre glass
- Closure elements: - polyamide ring nut - ring in stainless steel AISI 304
- Filtering element: - mesh in stainless steel AISI 304 with polypropylene structure; - mesh in polyester with structures in stainless steel AISI 304; - polypropylene disks
- Gaskets: NBR • Disks support: glass reinforced polyamide
Characteristics
- Maximum working pressure: 10 bar at 20°
- Standard filtration grade: 120 mesh (filtration available: 50, 80, 150, 200 mesh)
- Types of connection: threaded, victaulic or combined
- Manometer coupling: Ø1/4’’ female

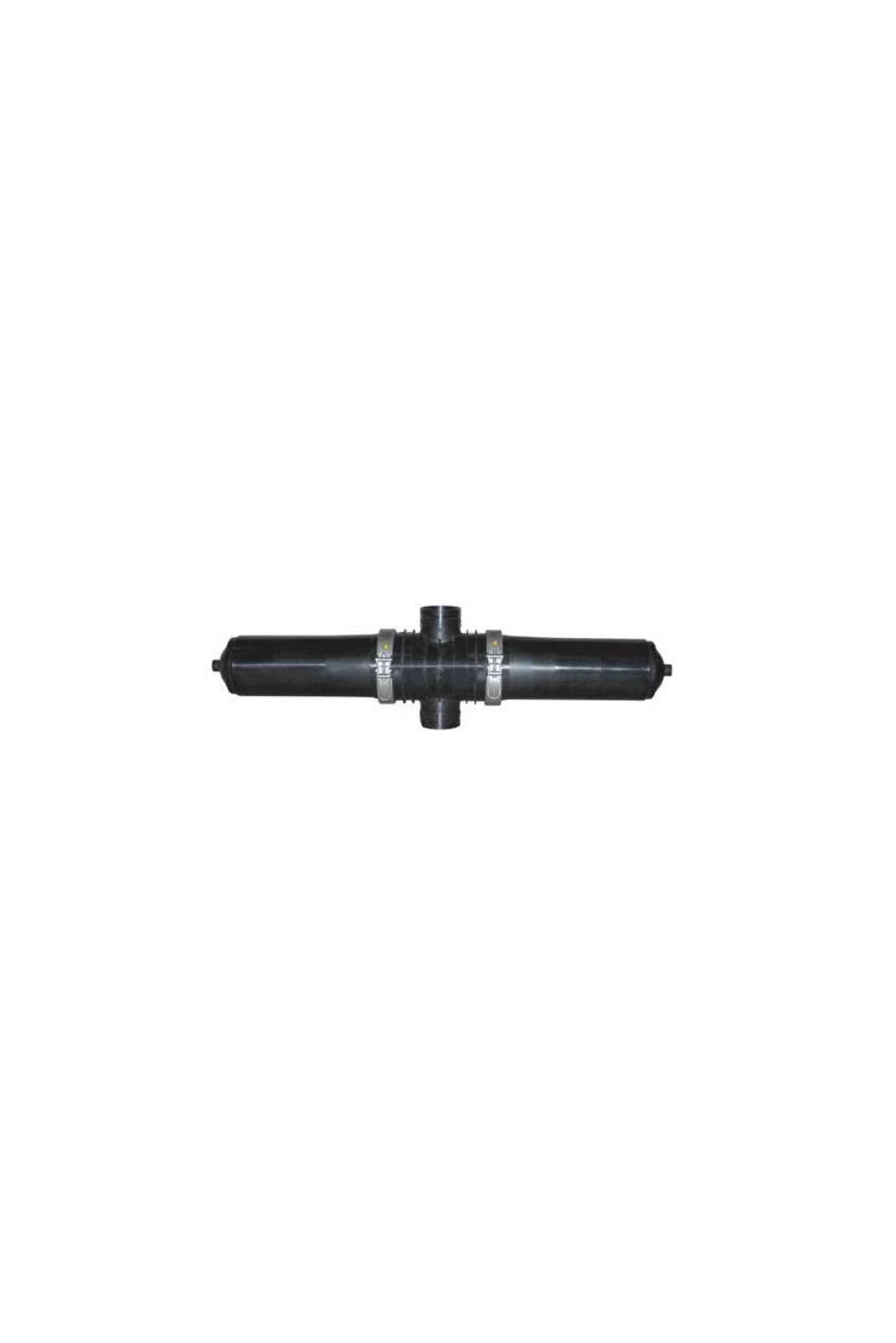

- Installation: on line or at right angle
