Butterfly Valves

More Views

Quick Overview

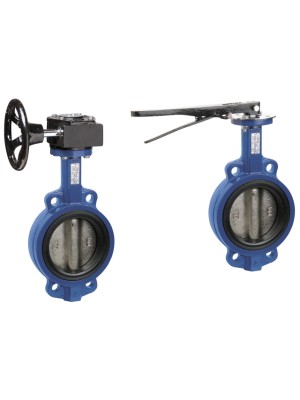

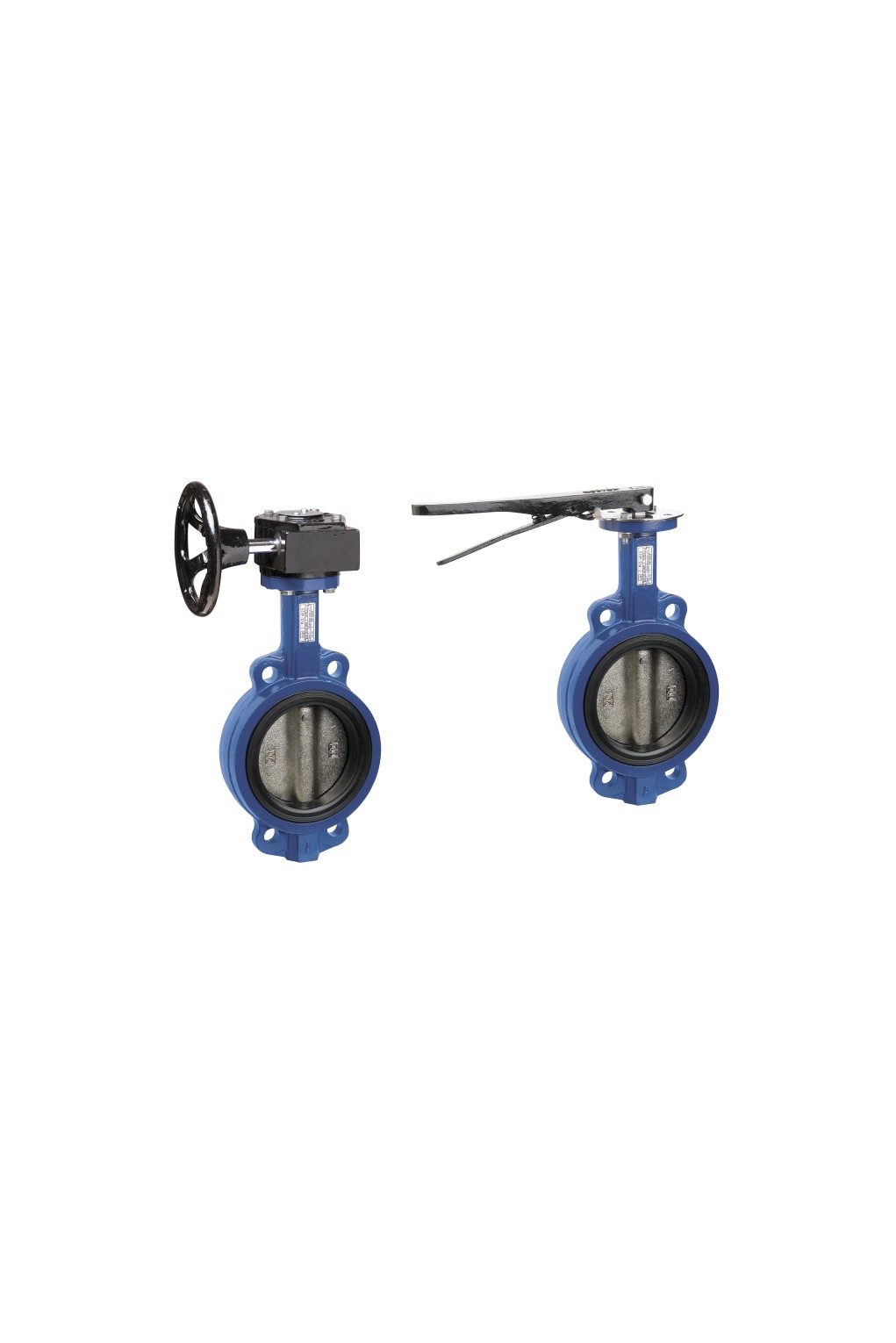

Ductile Iron Wafer butterfly valve

  • Diameters from DN032 - 1¼" to DN600 - 24"
  • For EN1092 PN16 flanges (also PN10 for DN≤150)
  • Lengths according to EN558-1 series 20 (ex DIN3202 K1)
  • Design according to EN593
  • Testing according to EN12266-1
  • Epoxy coating (min. 150 μm)
  • Available with ductile iron or SS disc
  • Seat in EPDM (NBR also for SS disc version)

More details

Available in the following versions:

  • with lever (lockable in both open and close position)
  • with manual gear
  • with CUTTER (DN≤200) or CUTTER-XL (above) electric actuator
  • with HOVERCRAFT pneumatic actuator


TR CU 010 compliant
